Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable

Name: Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube GelFilled Outdoor Optic Fiber Cable
Brand: Jiqian
Price: 200 USD

Quality Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable for sale

Brand Name : Jiqian

Model Number : GYDXTW

Certification : CE/ISO9001

Place of Origin : Guangdong,China

MOQ : 1KM

Price : 200-600USD/KM

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 60000KM/month

Delivery Time : 3-5 days, it depends on your quantity

Packaging Details : wooden drum

Fiber count : 48-288Core

Strength member : Metal reinforcement

Warranty : 25 years

MOQ : 1KM

OEM : Yes

Amoured : Yes

Length : 1/2/3/4/5KM

Feature : The fiber is fiber ribbon with large quantity core

Contact Now

Overhead 652D 288 core HDPE Outer Jacket Optical Fiber ribbon Cable Multi Tube Gel-filled Outdoor Optic Fiber Cable

Product description

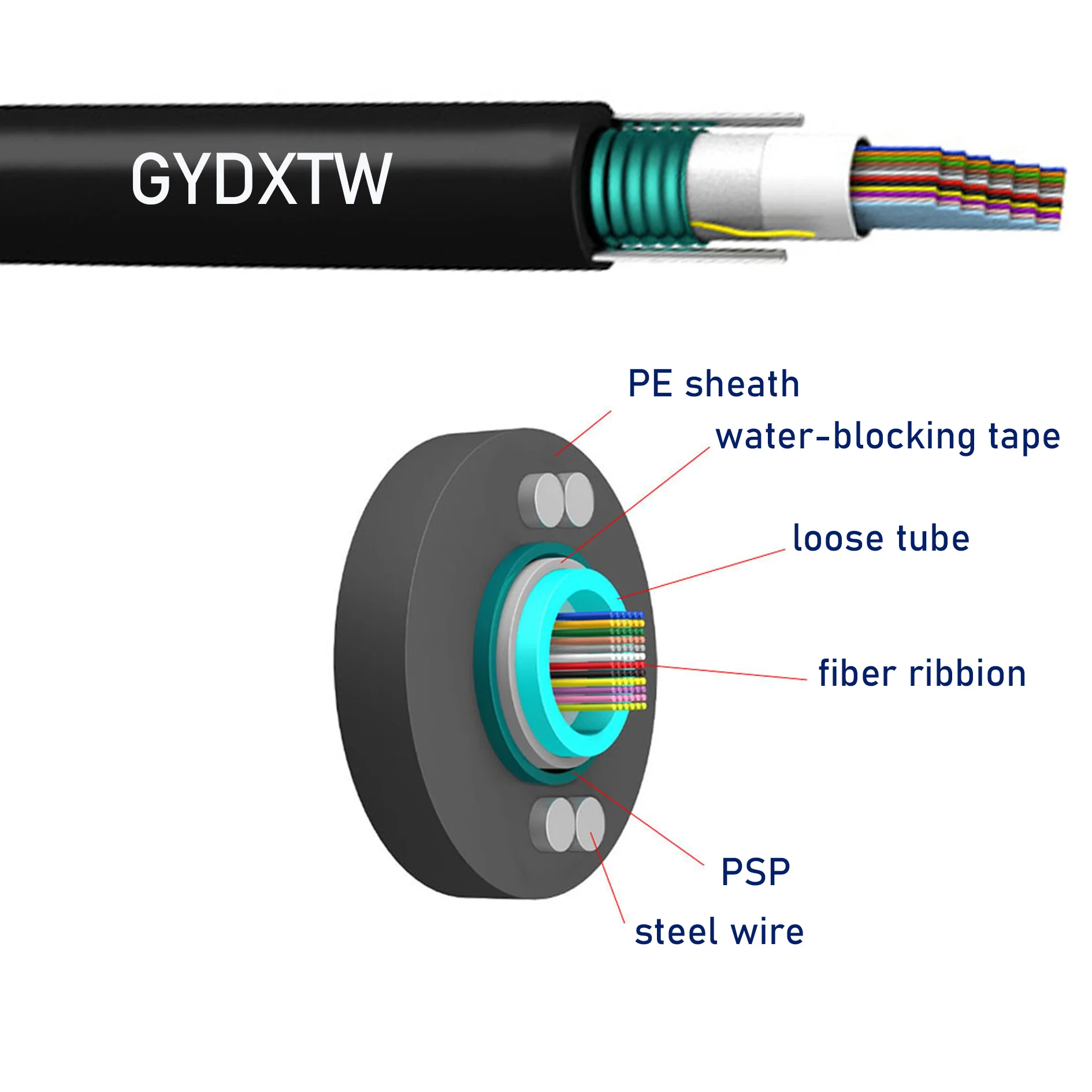

Fiber Ribbon cable refers to the fiber optic cable with fiber ribbon structure. Fiber ribbon cable can be divided into stranded type and center tube type

Overhead 652D 288 Core HDPE Outer Jacket Optical Fiber Ribbon Cable Multi Tube Gel-Filled Outdoor Optic Fiber Cable

Specification

Product Name	Overhead 652D 288 core HDPE Outer Jacket Optical Fiber ribbon Cable Multi Tube Gel-filled Outdoor Optic Fiber Cable
Fiber Count	48-384 Fibers,can be customized according to customers' requirement
Fiber Type	Singlemode G.652D / G.657A1
Outer Jacket Material	usually PE,plastic,LSZH,can be customized
Application	aerial,overhead
Diameter	depends on quantity of fiber and structure
Cable Length	1km,2km,3km,5km per drum,can be customized
Test Wavelength	1310/1550nm
Operation Temperature	-40℃ to +70℃
Strengthen	FRP in the centre of the fiber optic cable
Color	usually black,can be customized

Fiber Parameter

Item		Unit	Specification
Fiber Type			G. 652
Mode field diameter	1310nm	μm	9.2 ± 0.4
Mode field diameter	1550nm	μm	10.4 ± 0.8
Cladding diameter		μm	125.0 ± 1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	242 ± 7
Coating/cladding concentricity error		μm	≤12
Cable cut-off wavelength		nm	≤12
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Related Products

Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

Packing & Delivery

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity

Company Profile

Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
