GYTA Optical Cable And GYTS Fiber Optical Cable For Duct/Aerial Application

Name: GYTA Optical Cable And GYTS Fiber Optical Cable For DuctAerial Application
Brand: JQ/OEM
Price: 1 USD

Quality GYTA Optical Cable And GYTS Fiber Optical Cable For Duct/Aerial Application for sale

Brand Name : JQ/OEM

Model Number : GYTS/A

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 5-8 work days

Packaging Details : wooden drum

Fiber type : YOFC,Fiberhome,as request

Color : Black

Jacket : PE

Strength member : Steel Wire

Fiber count : 2-288 cores

Installation : Aerial & Duct

Fiber color : Blue,Orange,Brown,Aqua,Grey and so on

Armored : Steel tape/Aluminum tape

Product name : Outdoor Optic Fiber Cable

Application : Network

Contact Now

What s GYTS Fiber Optic Cable?

GYTS Fiber Optic Cable is the outdoor fiber optic cable type used for duct and aerial applications.

We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 288 cores.

A related GYTA type cable is available.

GYTA Optical Cable And GYTS Fiber Optical Cable For Duct/Aerial Application

GYTA Optical Cable And GYTS Fiber Optical Cable For Duct/Aerial Application

Features:

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

PE sheath enhancing moisture-proof

Small diameter, light weight and friendly installation

Long delivery length and low price.

Application

Application: Duct / Aerial /Direct buried
Standard : YD/T 901-2001 and IEC 60794-1
These corrugated steel tape armored cables are suitable for installation in aerial or duct environment for long haul communication, LAN

Specification

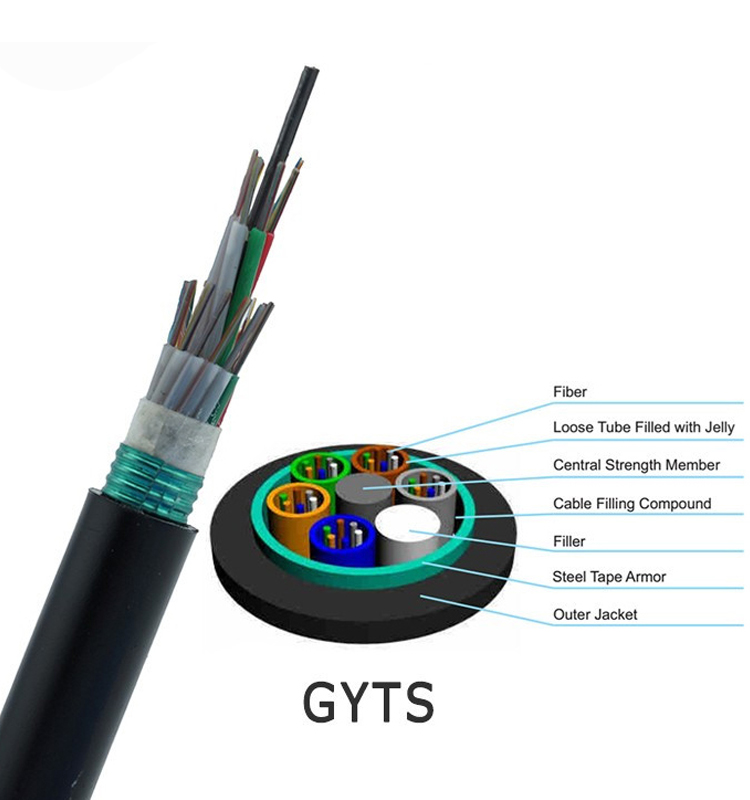

The fiber, Φ250µm, are positioned in a loose tube made of a high modulus plastic
Tubes are filled with a water-resistant filling compound
A FRP, locates in the center of core as a non metallic strength member
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core
The cable core is filled with filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath. The cable is completed with a PE outer sheath.

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282

What is Differences between GYTS optical cable and GYTA optical cable?

GYTS cable is universal optical cable; it can be used in aerial, duct and direct-buried while GYTA can be used in aerial cable and duct cable not in direct-buried cable.The S in GYTS refers to steel tape which can sustain large pulling force, the A in GYTA refers to Aluminum tape which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission. Choose GYTS cable when tensile strength is needed.
